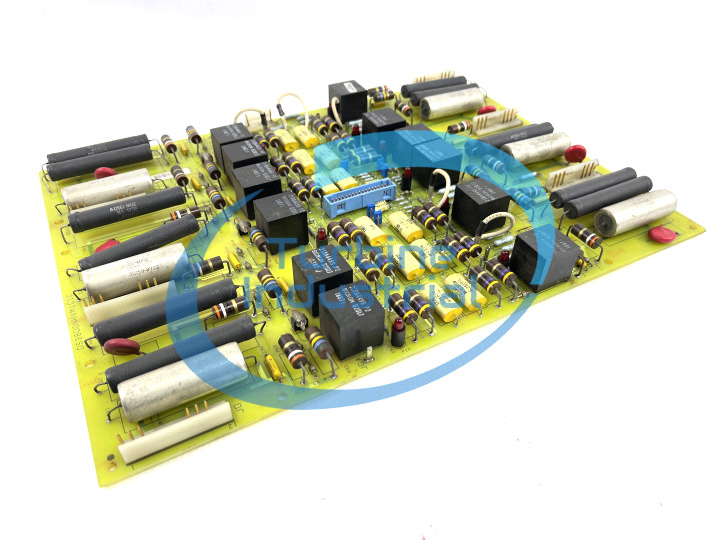

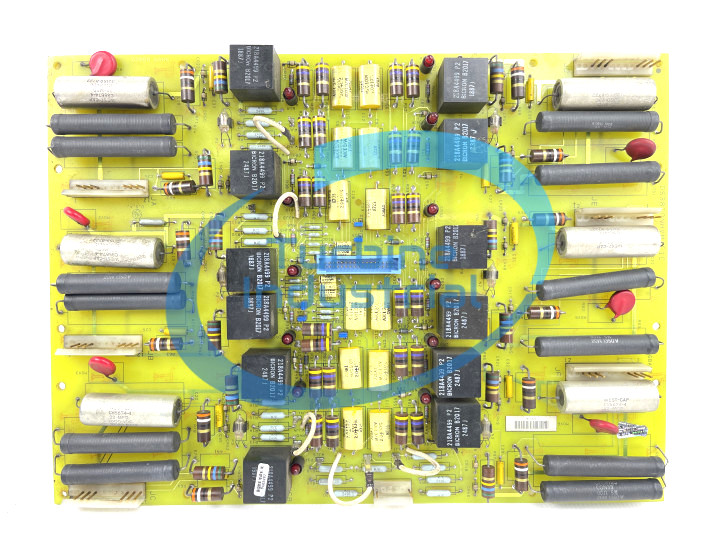

The DS3800NHVM1C1C is a very intricate circuit board manufactured by General Electric as part of their Mark IV Speedtronic Turbine series.
The DS3800NHVM1C1C has forty-eight big resistors. The base color of the resistors ranges between grey, brown and black. The DS3800NHVM1C1C also has seventeen average size resistors whose base color is light blue. The DS3800NHVM1C1C also has eleven tiny resistors whose base color is also light blue. Every resistor on the board has a set of up to five different colored stripes over its base color. These stripes show how much energy can go through each resistor.
The DS3800NHVM1C1C also features thirteen relays. The relays are large black boxes that regulate how much energy the board takes in and allows the DS3800NHVM1C1C to still function even if the energy current is too strong.
The DS3800NHVM1C1C also stores energy in electric fields using capacitors. The DS3800NHVM1C1C has six large metal capacitors, twelve large black capacitors, and twelve average-sized white capacitors.
The DS3800NHVM1C1C has eight male ports that allow it to be connected with other circuit boards.
The DS3800NHVM1C1C has seventeen average-sized burgundy diodes, twenty-six small dark and grey diodes, ten average-sized dark diodes, and six transparent diodes. A diode is used to have the energy flow in only one direction on the board. The DS3800NHVM1C1C also has twelve raised ruby LEDs. An LED is also referred to as a light emitting diode. These diodes light up as the current flows through them.
