Description

The DS3800NFIA1B1B was manufactured as a part of the Speedtronic Mark IV series of turbine controls. The DS3800NFIA1B1B was made by General Electric (GE). This part is a printed circuit board (PCB).

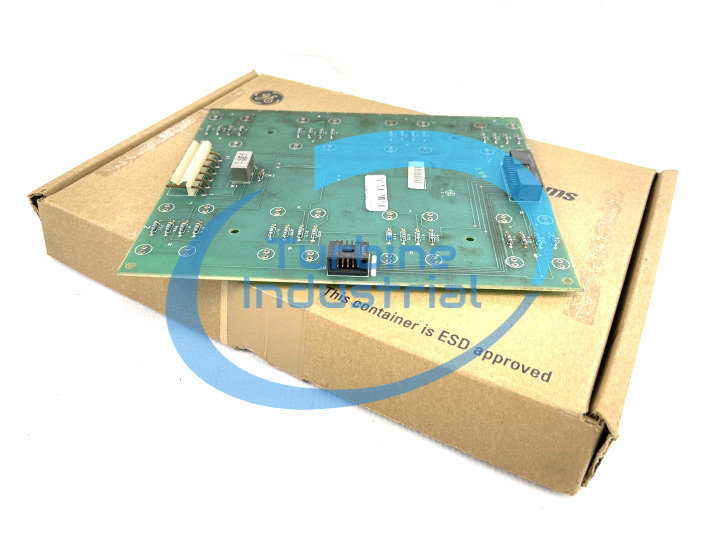

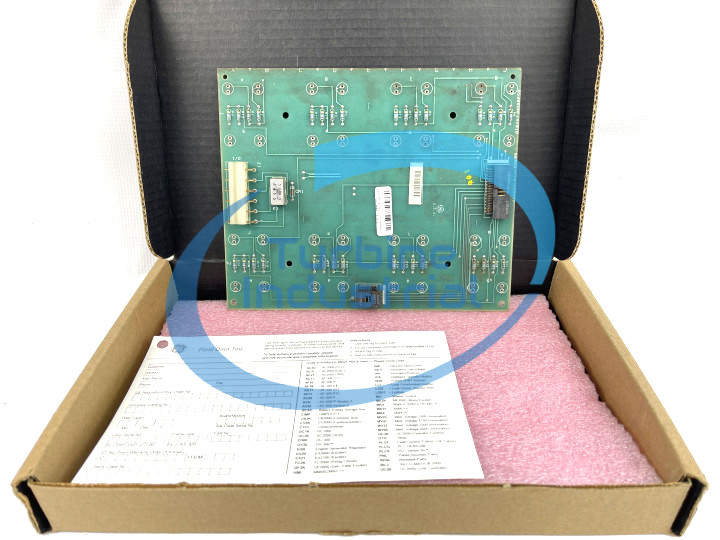

A variety of circuit board parts are found on the DS3800NFIA1B1B printed circuit board (PCB). One (1) blue jack connector port is placed in the middle of the upper edge of the DS3800NFIA1B1B. The port has what is known as a male connector. This connector port is named JA. On the right side of the DS3800NFIA1B1B there is a small jack connector port which is also blue. The small port also has a male connector port and is named JB. Resistors are aligned vertically in groups of four (4) all over the DS3800NFIA1B1B. Every resistor is covered in bands in different shades of blue. Thirty-two (32) resistors can be found on the DS3800NFIA1B1B. Every resistor is designated with the letter R from R1 through R32. Near the bottom center of the DS3800NFIA1B1B is a single diode. This component is small and orange. The diode is designated with the initials CR and is called CR1. Situated right beneath the diode on the DS3800NFIA1B1B is a relay, sometimes called a contactor. The rectangular relay, or contactor, is silver in color. This component is designated with the letter K and it is called K1. Written on the top left side of the DS3800NFIA1B1B is the printed circuit board's part number, DS3800NFIA1B1B. The letters A through J are marked on the left edge of the DS3800NFIA1B1B. The letters A through S can also be seen on the DS3800NFIA1B1B.
