Description

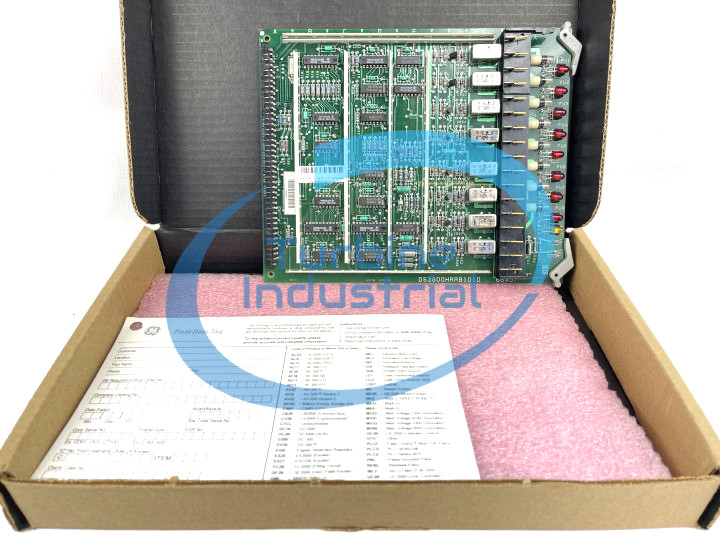

The DS3800HRRB1D1D is a relay circuit board made by General Electric (GE). This board is a part of the Mark IV Speedtronic line. The DS3800HRRB1D1D has over sixty regulators. Every regulator can only handle a certain amount of energy at a single time. The amount of energy is indicated in the bands on the outside of each resistor. The DS3800HRRB1D1D has a combination of sixteen EEPROM and EPROMS. The EEPROMs are also called integrated circuits and can be coded once. Where the EPROMs are also called integrated circuits, however, they are reprogrammable. There are eight grey rectangles that are called crystal oscillators. The crystal oscillators are used to make an electrical signal with an exact frequency. There are seven metallic dividers across the DS3800HRRB1D1D . There is a feminine port and a masculine port on the DS3800HRRB1D1D . The DS3800HRRB1D1D has eight clear LEDs, one amber LED, and eight crimson LEDs. There are nine dark transistors. The transistors are little and round. Transistors are able to intensify or changing an electrical current or electronic signal and are semiconductive. Transistors can be identified by the three points that fasten it to the board. There are about thirty auburn colored diodes The DS3800HRRB1D1D has nineteen pale blue diodes. There are four grey diodes. The DS3800HRRB1D1D has two anchor sites and two hooks to lock the board in place with your current set up. The board features classifications on every piece. Every piece has outlined framework on the board to illustrate where it should be positioned, along with the part number (DS3800HRRB1D1D ).
