DS3800HCMA1F1G

GE DRIVE SYSTEM DUAL COMMUNICATION CIRCUIT CARD DS3800HCMA1F1G

Contact
Us!

Warranty: 3 Year Warranty
Manuals & Datasheets: Request via Email

DS3800HCMA1F1G

GE DRIVE SYSTEM DUAL COMMUNICATION CIRCUIT CARD DS3800HCMA1F1G

  • 4.00 (2)
  • Click a star to rate this product

Availability:

In Stock Ships Today


Description

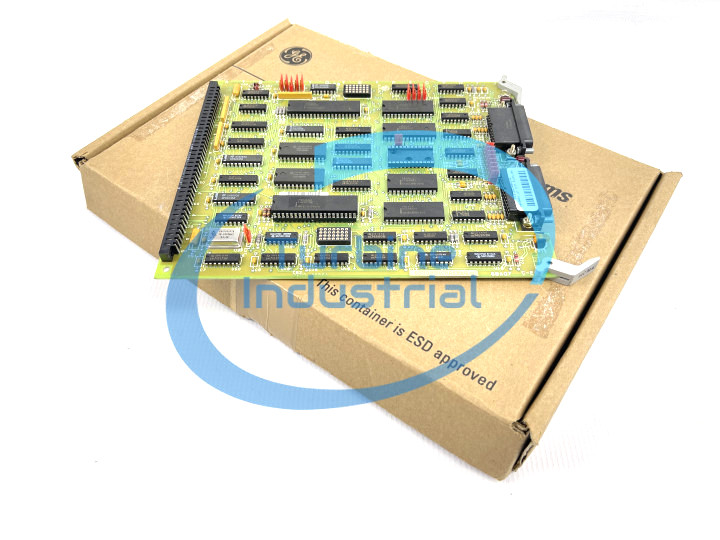

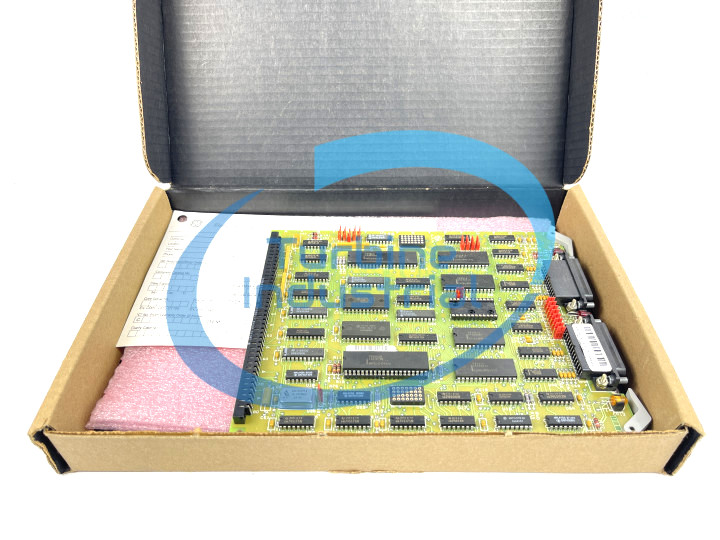

The GE Dual Communications Control Board DS3800HCMA1F1G features a modular connector for attachment to a drive and retention levers to hold the board in the drive. The GE Dual Communications Control Board DS3800HCMA1F1G also is populated with 20 jumpers, and 1 amber and 2 red indicator LEDs. The board also has 2 34-pin connectors, and multiple capacitors.

The indicator LEDs on the board are visible to the drive operator at a glance. This gives the operator a quick way to monitor the operation of the board while the drive is processing. The red LEDs are located between the retention levers along with the 2 34-pin connectors. When the red LEDs are lit, it indicates that an error has occurred during processing. There are several steps to take to pinpoint the cause of the problem. 1 step is to remove the board from the drive and use the test points to test the individual circuits on the board.

This is especially useful if you know the description of the red LED. You can view a description of the LEDs in the product specifications that come with the board from the factory. It describes what it means when the LED is on. It also describes what it means when the LED is off, or flashing.

Remove any ribbon cables that are attached to the 2 34-pin connectors accessible from the front of the board. Then, lift the 2 retention levers and pull the board out of the drive. This also disconnects the board from the modular connector at the rear of the board.


Purchase

Please give us a call or send us an email for pricing on New Surplus and Reconditioned replacements that we have in our inventory. Our lead times are short, stock is excellent, and pricing is competitive. We hope to be your go-to supplier for all GE Turbine replacement boards and controls.

Exchange

We conveniently offer an exchange program that allows you to recycle your old board and receive an up-front discount on a replacement. Please ask about our exchange credit program if you have a defective board to exchange with the purchase of a new or reconditioned replacement. We ask that the defective board is sent in within 30 days of the purchase.

Repair

We offer repair on most GE Turbine boards we sell. Although we usually have replacements available, we recognize that customers may prefer to have their board repaired. Our repair program allows us to offer a lower cost alternative to replacement.
