Description

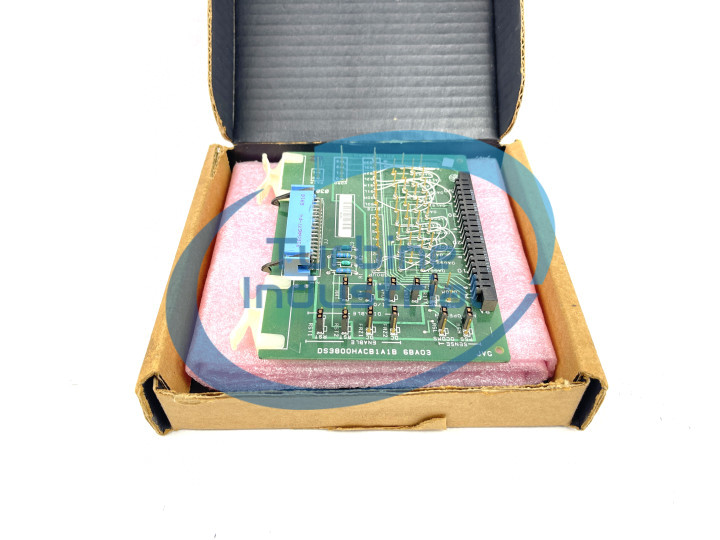

The GE Turbine Control Board DS3800HACB features multiple pins that are connected through fine wires wrapped around the pins. The GE Turbine Control Board DS3800HACB also is populated with 11 jumpers for configuring the board and 1 20-pin connector.

The jumpers have IDs that do not follow a specific alphanumeric sequence. That is, they do not have specific prefix character or sequence of characters. Instead the IDs refer to the purpose of the jumper and how it configures the board. For example, some of the IDs are FRZ1, WRD3, and R5H. This is helpful when you refer to the configuration information about the board. You find this presented in the printed information.

When you first receive the original board from the manufacturer, you will find the box is sealed with tamper proof security tape. If the seal is broken when you receive the box, it might indicate that the contents of the box was tampered with while in transit. Use a sharp blade to slice open the tape. Move aside the packing material and you will find the board in a sealed static-protective bag. Keep the board in the sealed bag until you are ready to install the board. The static-protective bag prevents static from entering the board and building up. This can cause damage to the board.

Along with the bag you will find printed documentation. This will include warranty information, details about how to contact customer support, and an instruction manual about configuring and installing the board.
