DS3800DSQD
DS3800DSQD GENERAL ELECTRIC PRINTED CONTROL BOARD
Contact
Us!
Warranty: 3 Year Warranty
Manuals & Datasheets: Request via Email
DS3800DSQD
DS3800DSQD GENERAL ELECTRIC PRINTED CONTROL BOARD
- 5.00 (1)
- Click a star to rate this product
Availability:
In Stock Ships In 3-5 Days
Description

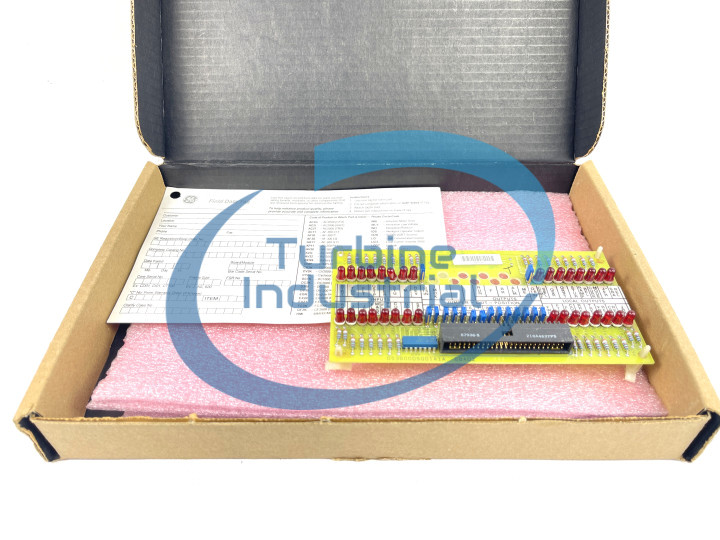

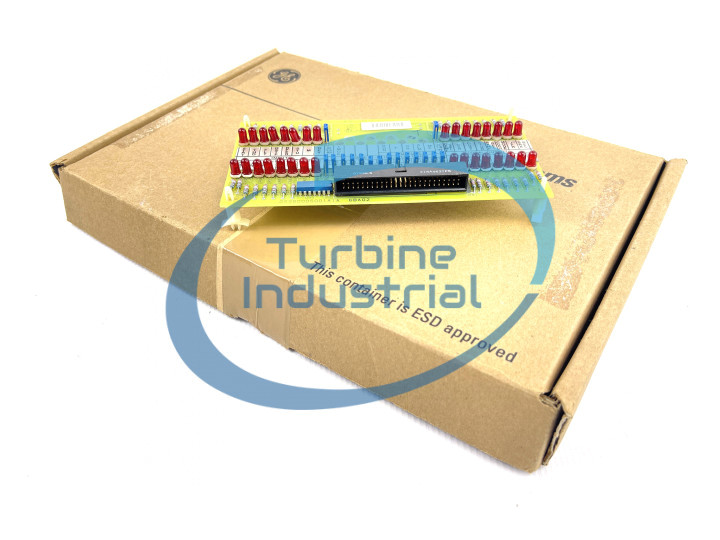

The GE Speedtronic Circuit Board DS3800DSQD is 3 inches in height and 7 inches in length. The board features 32 indicator LEDs, multiple capacitors, and 16 jumpers. The GE Speedtronic Circuit Board DS3800DSQD also is populated with 1 50-pin connector.
The indicator LEDs that populate the board are labeled as input and output indicators. The input LEDs are located on 1 side of the board while the output LEDs are located on the other side of the board. They provide a means for the drive operator to monitor the operation of the board with a glance at the board. The board is populated with 16 input LEDs and 16 output LEDs.
When you receive the original board from the factory along with the board you will receive some written material. This will include a written warranty and information about receiving help and more information about the board. You might find information about other products and services offered by the manufacturer. You will also find a printed guide that describes the board and how to install it. The guide will describe the LEDs and what each LED indicates.
The drive interior has a board rack in which you install the boards you need to perform the processing required for your site. The rack has a location for the GE Speedtronic Circuit Board DS3800DSQD that enables the operator to view the LEDs without obstruction. Use 4 screws to install the board in the rack and use 2 hands to install it. With 1 hand hold the board against the rack and use the other hand to insert the screws.
Purchase
Please give us a call or send us an email for pricing on New Surplus and Reconditioned replacements that we have in our inventory. Our lead times are short, stock is excellent, and pricing is competitive. We hope to be your go-to supplier for all GE Turbine replacement boards and controls.
Exchange
We conveniently offer an exchange program that allows you to recycle your old board and receive an up-front discount on a replacement. Please ask about our exchange credit program if you have a defective board to exchange with the purchase of a new or reconditioned replacement. We ask that the defective board is sent in within 30 days of the purchase.
Repair
We offer repair on most GE Turbine boards we sell. Although we usually have replacements available, we recognize that customers may prefer to have their board repaired. Our repair program allows us to offer a lower cost alternative to replacement.
