Description

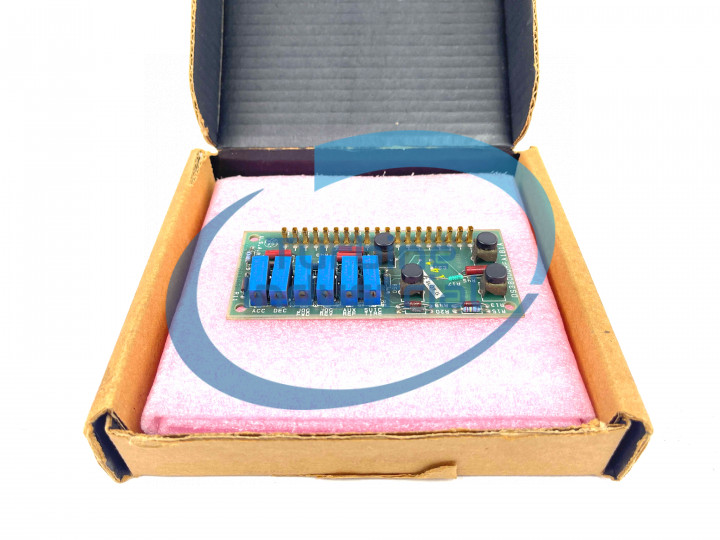

The DS3800DRFA1B1A of the Mark IV Speedtronic. The DS3800DRFA1B1A is a tiny circuit board for Mark IV line. The DS3800DRFA1B1A is a regulator board used for gas turbines. This board despite its small size has Several diodes of different colors. There are two teal diodes, two black diodes, three red diodes and four large brown diodes. Along with the diodes is a row of terminal prongs. Around the prongs are grey spots that bring the electrical current to the prongs and the connector. There are four terminals with a flat head screw on the top. You can use these terminals to connect diodes, wires, or resistors like a set is already holding. The DS3800DRFA1B1A has resistors as well. Each resistor is labeled with different color bands. These bands identify how much power each resistor can handle. The board also has Potentiometers. Each of the six potentiometer's faceplates has a flat head screw so the amount of current allowed through the board can be changed if necessary. The DS3800DRFA1B1A is also four holes for this small circuit board to be attached to a motherboard. The DS3800DRFA1B1A has GE's seal and has the part number DS3800DRFA1B1A printed as well. Each piece of the circuit board is labeled with its corresponding numbers and or letters for identification using white ink. Every piece has a corresponding white box around it as well.
