DS3800NAIA1E1F
GENERAL ELECTRIC GAS TURBINE TGSI DS3800NAIA1E1F
Contact
Us!
Warranty: 3 Year Warranty
Manuals & Datasheets: Request via Email
DS3800NAIA1E1F
GENERAL ELECTRIC GAS TURBINE TGSI DS3800NAIA1E1F
- 5.00 (1)
- Click a star to rate this product
Availability: Call for Availability
Description
GE developed the DS3800NAIA1E1F PCB (printed circuit board) as a component of their Speedtronic/Mark IV system. The Mark IV was designed for steam/gas turbine control. This system can automate certain procedures, such as startup, cool down, and shut down, and can also protect the turbine system from operating under unsafe conditions.

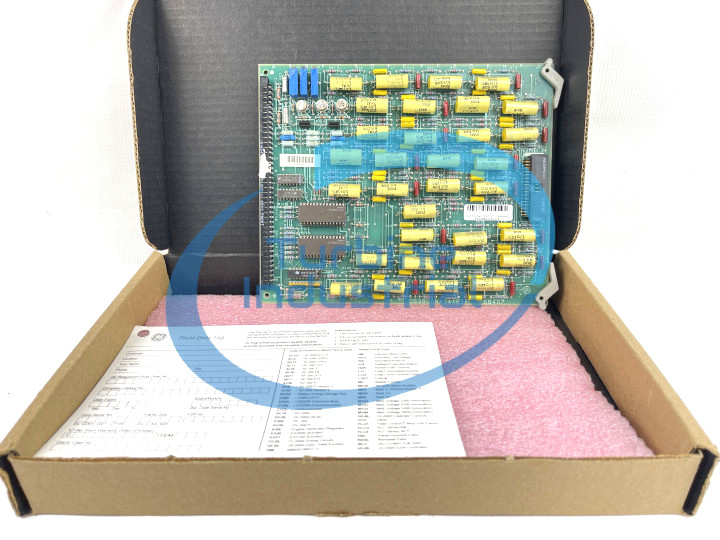

The DS3800NAIA1E1F is alignment-marked on its top edge. It is marked along the bottom edge with the code "6BA07." It is factory-drilled and has a board extractor installed in each right-hand corner. Extractors help technicians extract or insert the board without touching delicate circuitry, especially in tight working conditions.

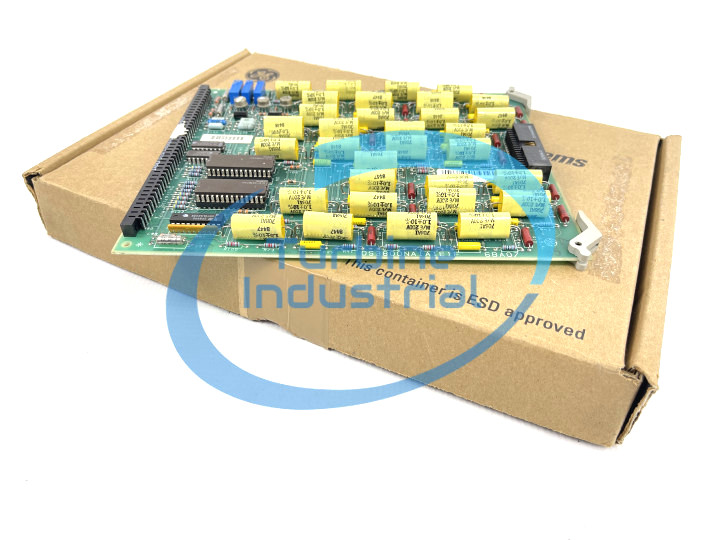

The DS3800NAIA1E1F has six potentiometers located in its upper left quadrant. This includes three trim pots and three rotary potentiometers. There is also one resistor network located on the same side in the lower corner.The board is populated with thirty-two 200V yellow film capacitors, along with many other smaller polyester film capacitors. It is also built with multiple diodes and capacitors.
The DS3800NAIA1E1F has a connector attached along each short edge for communicating with other PCBs. This includes the male connector 218A4551 AMP on the left edge and the female 218A4637P2 located on the right edge.
Technical support for the DS3800NAIA1E1F--such as installation guidelines and maintenance schedules--may be found within original GE datasheets and manuals.
Our sales team here at TurbineIndustrial is here to help you with all your automation needs. If you have questions we can answer them via email, or call us at 919-372-8413.
